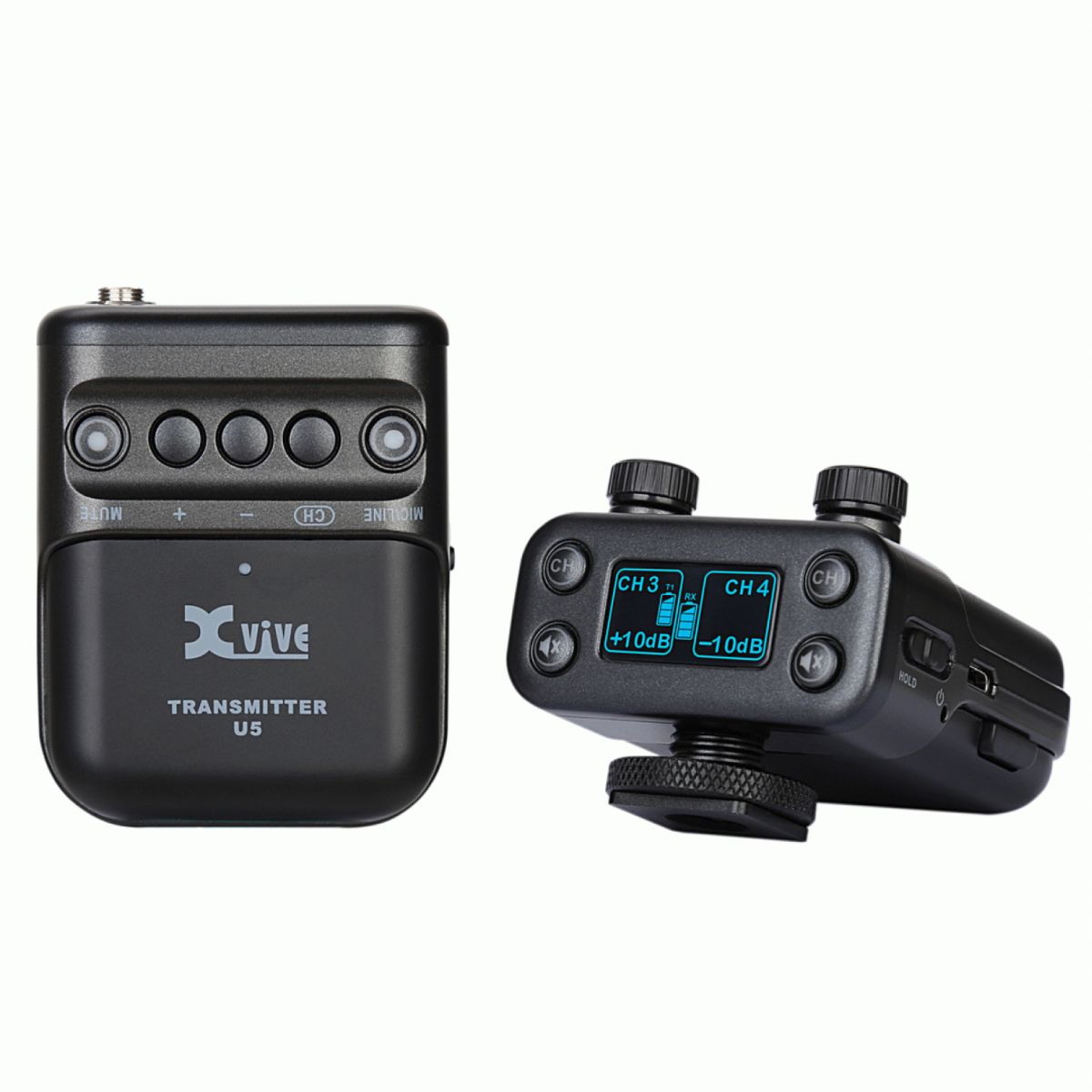

Xvive U5 is a dual channel wireless lavalier microphone system come with LV1 professional lavalier microphones allowing you to send wireless signals from lavalier microphones or other audio sources to a DSLR camera,digital camera,recorder,smart phone and other audio device, and can be used for video shoots, livestreams, interviews, weddings and more.
3.5mm TRS analog output, transfer analog to IOS lighting or Type C (cables not included)
Simultaneous broadcasts on 6 channels no-interference, Less than 6ms Latency,Up to 107 dB signal-to-noise ratio provides clear, detailed audio at any volume.
Solid RF connection over a 100-foot range.High Resolution 24-bit/48kbps audio.Broad 20Hz-20kHz frequency response; mic mode with100Hz high-pass filter.Mic mode dynamic range is 99dB, line mode dynamic range is 107dB
Battery Capacity: 830mAh,provides up to 5 hours of continuous use with 2.5 hour full charging time. Perfect for on the go recording.
The batteries can be charged while installed in U5 transmitters or receivers.(or you can use the U5C battery charger, sold separately along with three backup U5B batteries)
Please turn on the power switch to the ‘on’ position: the display screen will light up, and then you can use it,no further action.Set transmitter and receiver to the same channel for pairing; the green LED on the receiver will illuminate when the connection is successful.
U5 contents：1 x Receiver；1 x Transmitters;1 x Professional LV1 lavalier microphone;2 x U5B battery;1 x Mic clips;1 x Windscreens;1 x 3.5mm to 3.5mm stereo cable;1 x Dual USB changing cable;1 x USB charging cable;1 x Pouch.
SPECS:
- Frequencies:2400-2483.5 MHz
- Wireless Range:Up to 100ft; depends on RF signal absorption,refection and interference
- Dynamic Range:MIC: 99dB; LINE: 107dB
- Signal-To-Noise Ratio:MIC: 95dB; LINE: 107dB
- Battery Life:5 Hours (Xvive U5B battery)
- RF Sensitivity: -86dBm
- Total Harmonic Distortion:0.2%
- RF Output Power:10 mW E.I.R.P. max
- Operating Temperature Range:-18° to 57°(battery characteristics may limit this range)
- Channel Count:Up to 6
- Latency:6ms
- High-resolution audio:24-bit/48kHz
