Line 6 Relay G10S Digital Wireless System


  • Line 6 RELAY G10S
SKU: G10S Categories: , Product Brand:

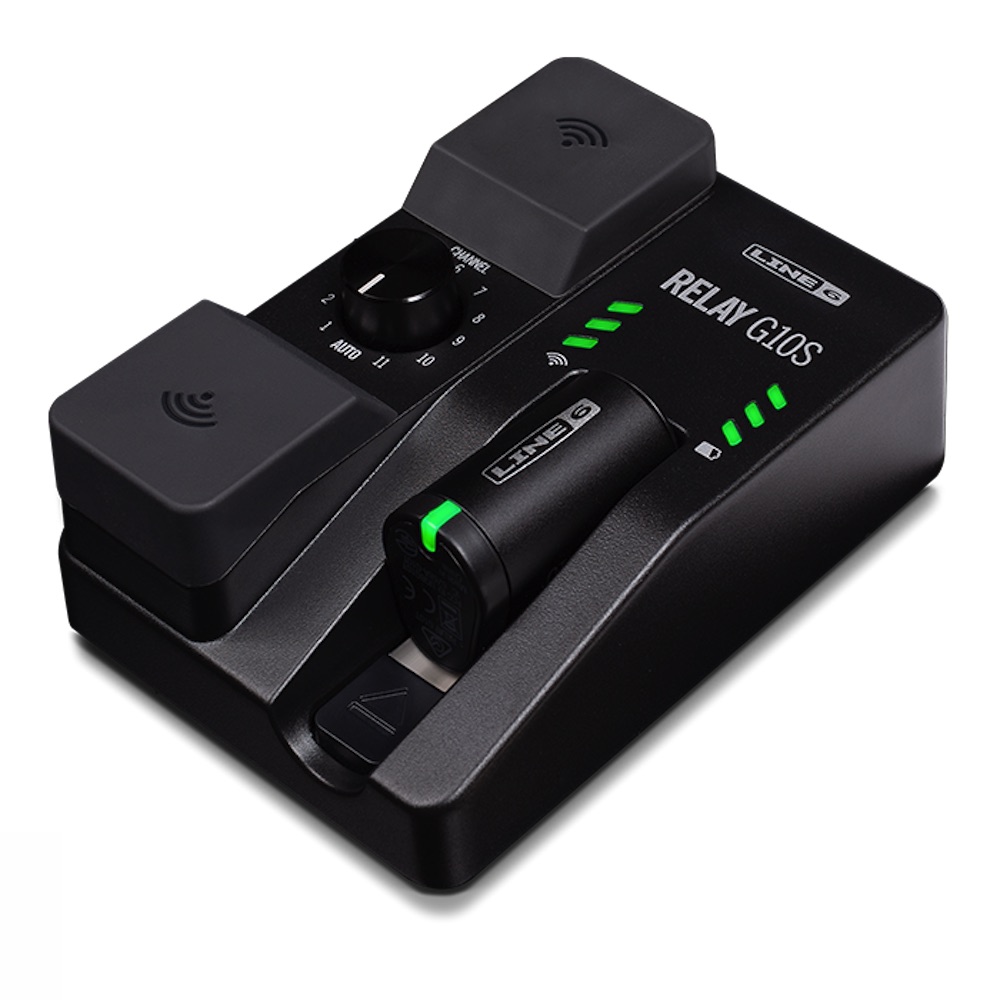

Line 6 Relay G10S Digital Wireless System

The eight models in the Relay Guitar Wireless Series provide something for every player—from the plug-and-play simplicity and convenience of the G10 and G10S to the proven performance and roadworthiness of the G70 and G75 professional guitar wireless systems. Since 2009, Line 6 has led the way in digital guitar wireless, and our commitment to creating innovative and inspiring products is evident throughout the entire Relay Guitar Wireless Series.


Transmission RangeUp to 130 feet line-of-sight (may vary due to local conditions)
Battery LifeApprox. 8 hours (internal rechargeable battery)
Frequency ScanningYes
Support For Multiple TransmittersNo
Support For Multiple InstrumentsAuto/ Manual Channel Switch
Transmitter Connectors1/4-inch Male unbalanced input plug

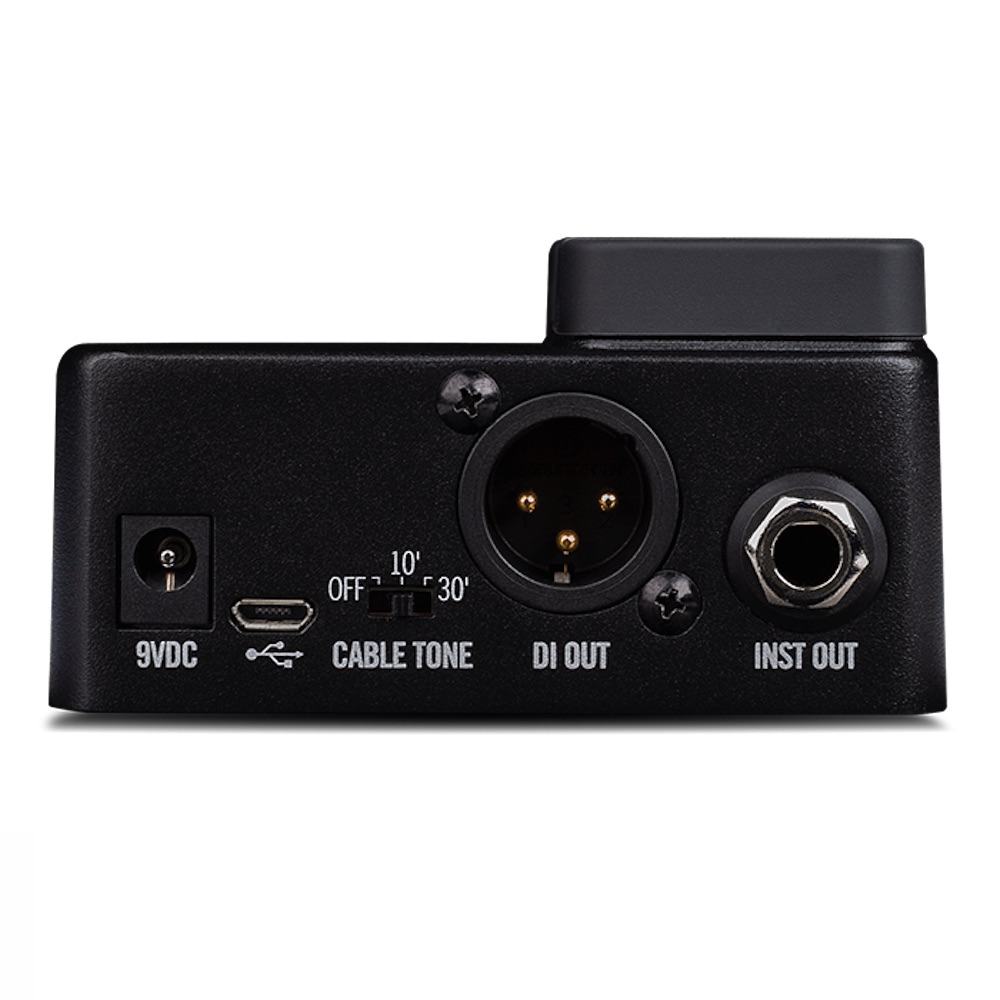

Receiver Connections1/4-inch output, Balanced XLR DI output
Power9V DC Barrel 500mA 5V DC 1A MicroUSB
Transmitter Sleep ModeAutomatic, activated after 4 minutes without any audio input extends standby time up to 200hrs
Controls“Channel 1-11 select, Automatic Channel Scan and Select, Cable tone”
System Latency<2.9ms (RF2 mode)
AntennasInternal Antennas
Frequency Response10Hz – 20kHz
Dynamic Range>112dB
RF Carrier Frequency2.4GHz
Operating modesRF2
Compatible ChannelsUp to 11 (manual), Up to 14 (automatic)
Transmitter LED DisplayPower, Status
Transmitter. LCD Displayn/a
Receiver. LED DisplaysConnection Status, Transmitter Battery Life
Receiver. LCD Displaysn/a
Power SupplyDC-1g power supply (9VDC)
