An authentic reproduction of the original “System 2500” circuitry from the 70’s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.

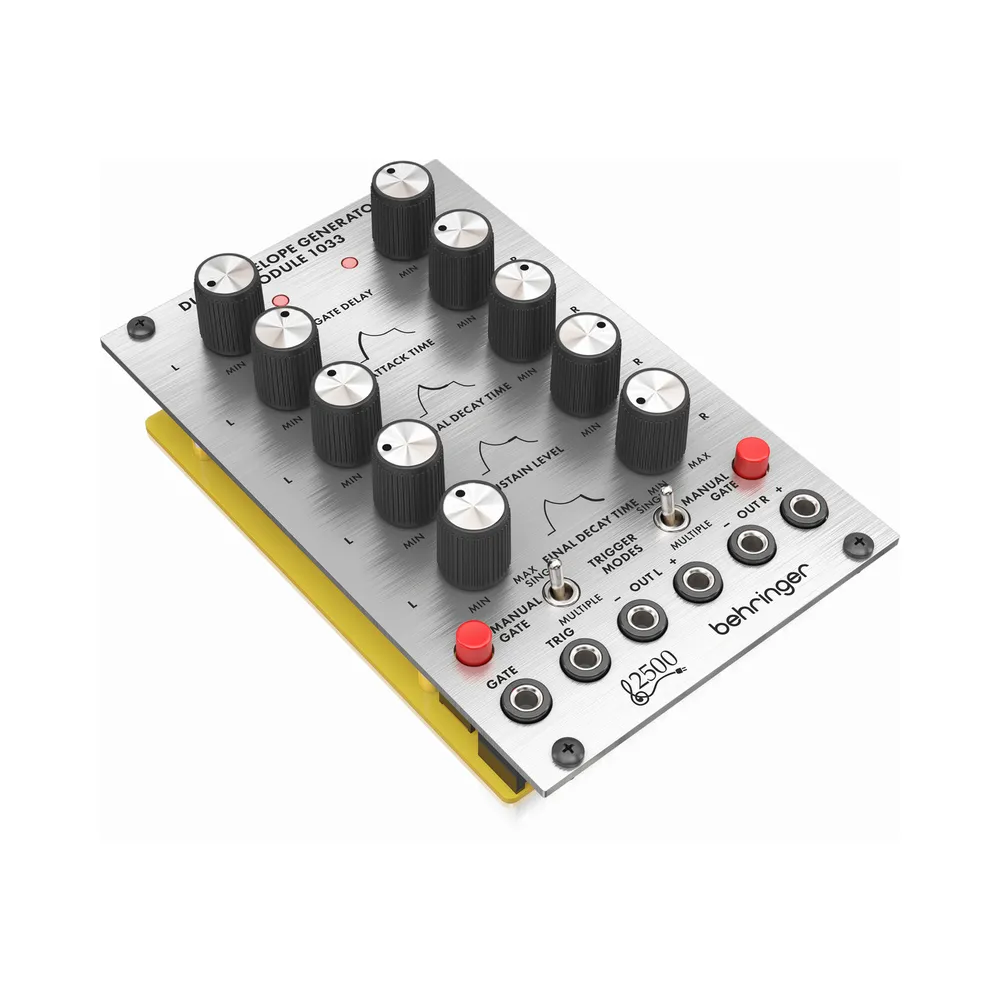

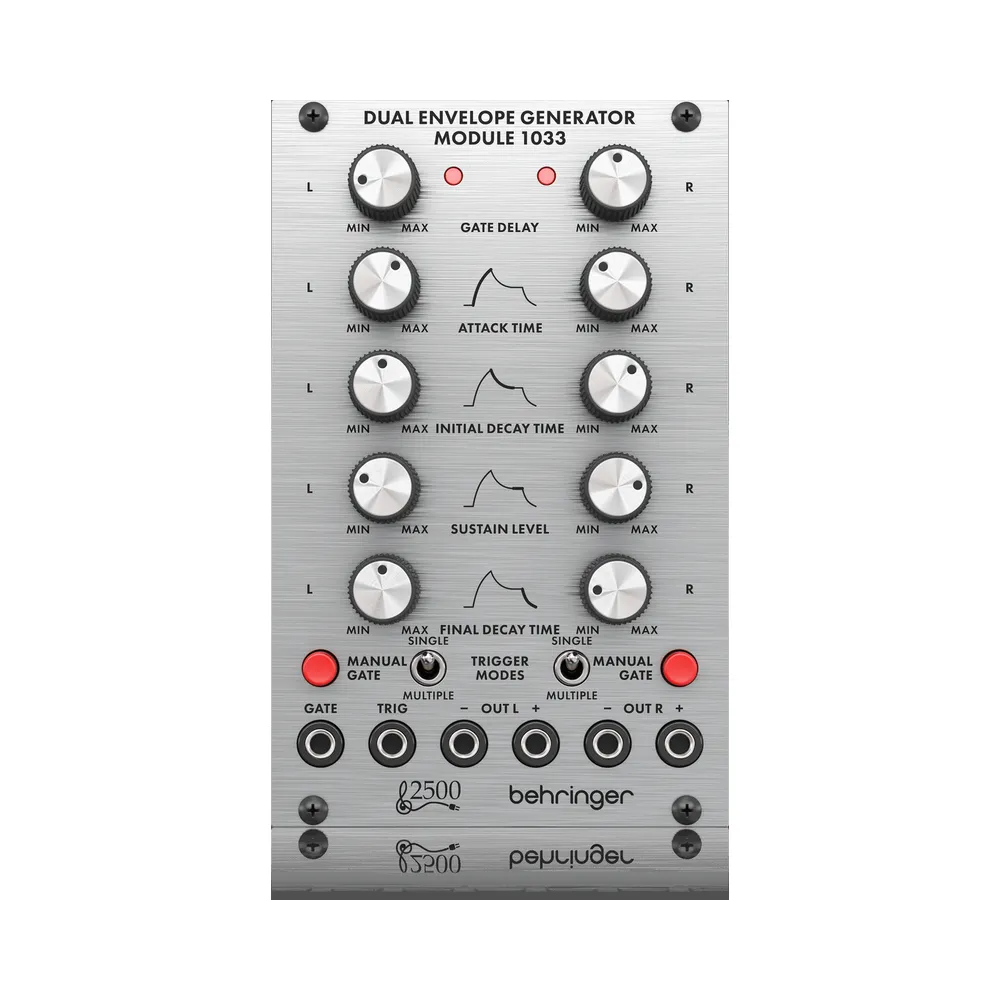

Classic 1033 analog dual DADSR module from the ’70s
Authentic reproduction of the circuitry from the “2500” Series
The module contains two identical envelope generators for creating control signals
Each generator features 5 adjustable parameters: Gate Delay, Attack Time, Initial Decay Time, Sustain Level, Final Decay Time
Gate enables the beginning of the envelope to be delayed between 3 ms and 3 seconds
Each envelope is initiated by Gate and Trigger signals
Switchable between 2 operating modes for added flexibility
Single trigger mode uses only the gate signal to control the envelope
Multi trigger mode uses a positive trigger pulse to re-trigger the envelope while a Gate signal is present
Manual gate operation via front panel push button with LED for gate signal indication
Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V
