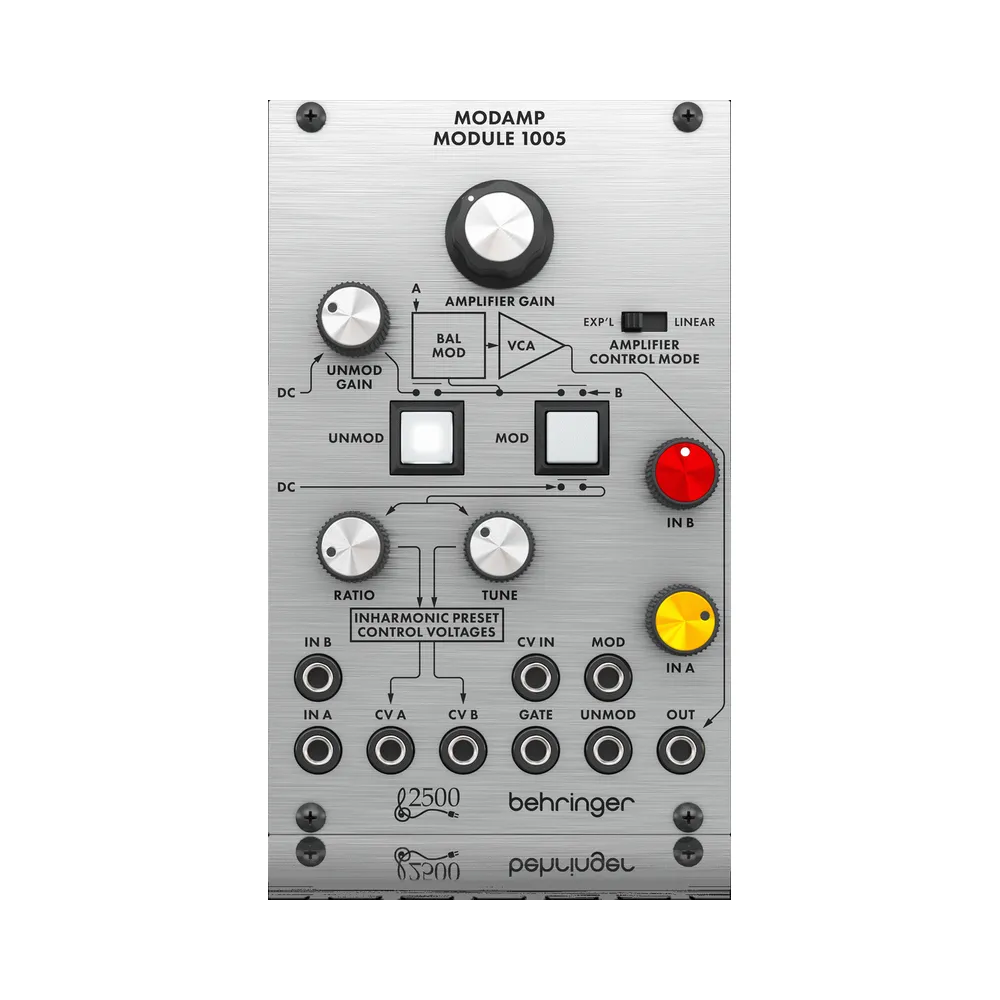

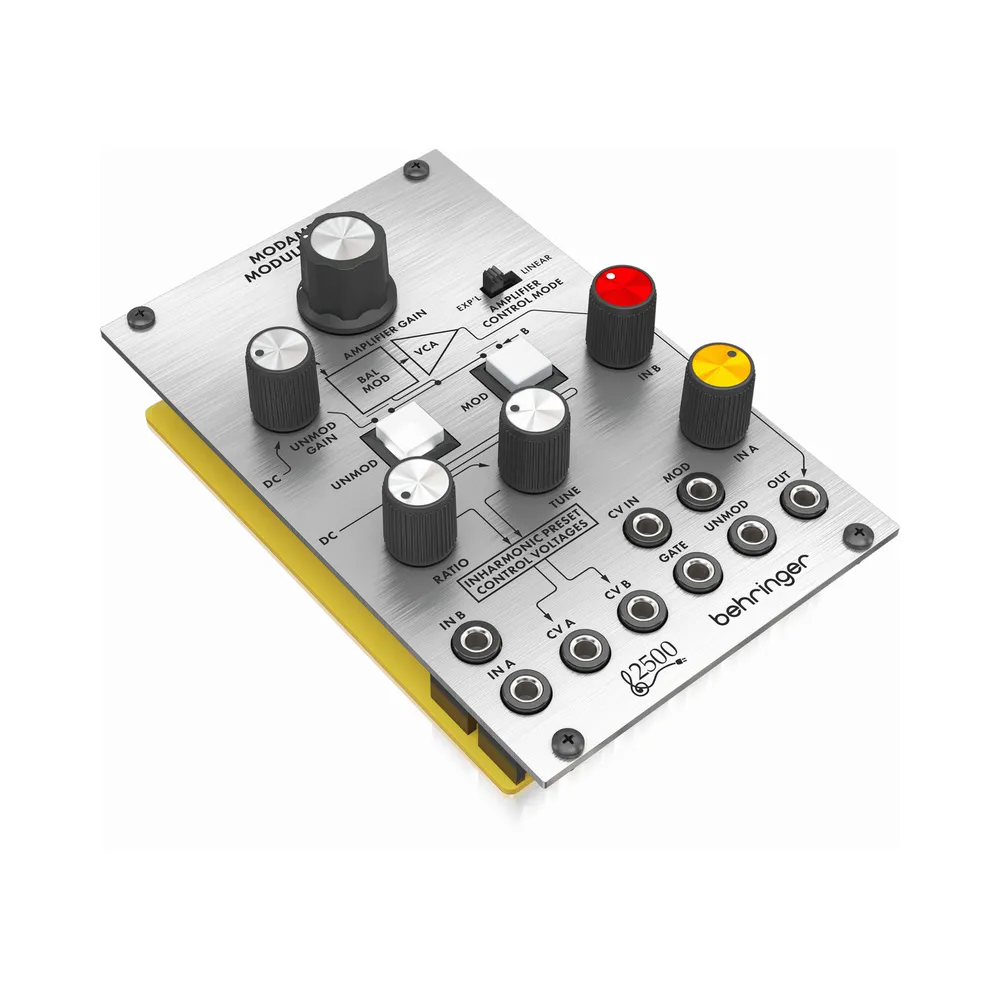

Behringer 1005 Modamp Module
- Classic 1005 analog ModAmp module from the ’70s
- Authentic reproduction of the circuitry from the “2500” Series
- Consists of a discrete balanced modulator and VCA
- Balanced modulator accepts 2 input signals (DC to 20 kHz) and produces an output that is a multiplication of the two signals
- Creates complex waveforms with in-harmonic overtones
- 2 precision voltage outputs control the frequency of the VCO’s that are typically connected
- Modulation is activated by illuminated push buttons (Mod and Unmod)
- In Unmod mode the signal at input A passes to the output without any modulation and the level is set by the Unmod Gain control
- Modulation can be switched on and off by trigger or gate signals which can be patched into the module
- VCA accepts the output from the modulator and modifies the output signal level according to the sum of the Gain control and external control voltages
- 2 external VCA control signals can be attenuated by front panel controls
- VCA mode can be selected as either exponential or linear
- Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V
